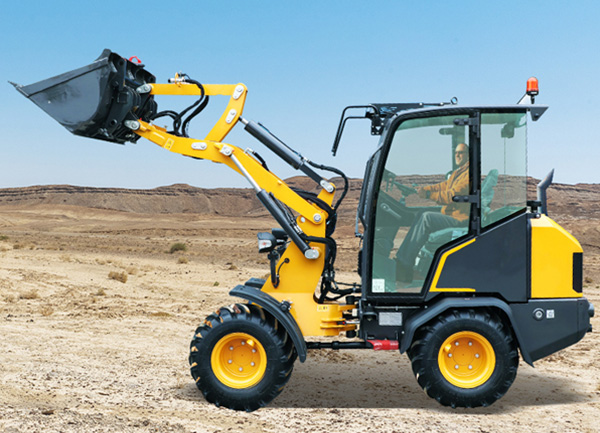

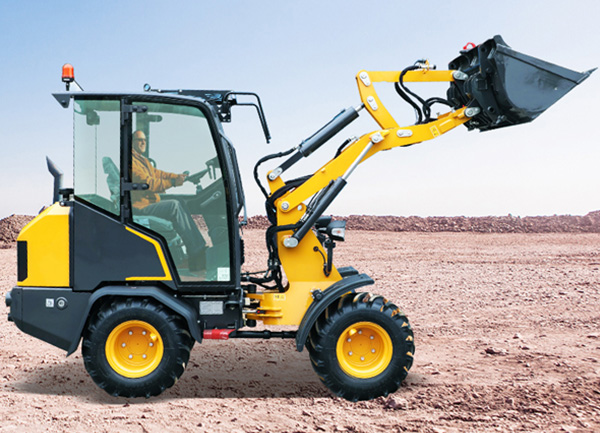

906轮胎式装载机

906

整机参数

操作重量Operating weight

2360kg

铲斗斗容Bucket capacity

0.4m³

发动机系统Engine system

品牌Manufacturer

Yanmar

型号 Model

3TNV80F

发动机输出功率≤Max. engine output

17.8kW

功率转速≤At max. rpm

3000rpm

发动机排量Displacement

1.267L

缸径Bore

80mm

冲程Stroke

84mm

电气系统Electric system

系统电压Voltage

12V

电池容量 Battery capacity

80Ah

发电机额定功率engine rated power

12V/40A

起动机输出功率engine output power

1.1kW

主要性能Main performances

掘起力（转斗）≤Max. digging force(bucket)

14kN

牵引力≤ Max.traction

15kN

提升高度提升能力≤Max.lifting height lifting capacity

1150kg

对直状态极限倾翻载荷Bucket tipping loads（straight）

1500kg

全转向极限倾翻载Bucket tipping loads（ Full Turn）

1300kg

驱动形式Drive type/drive system

静液压传动
Hydrostatic

行驶速度Travel speed

20/10 km/h

差速锁(前后桥速度不一致请标明）

标配,前后桥均配

Differential locks

Standard，both axles

动臂提升时间Lift time

4.5s

下降时间Lowering time

3s

翻斗时间Dump time

2s

转向角≤Max articulation

40°

摆动角≤Max oscillating

9 °

液压系统Hydraulic system

工作液压系统流量 Work hydraulics discharge volume

45.6L/min

工作液压系统压力Work hydraulics working pressure

18.5MPa

驱动液压系统流量 Drive hydraulics discharge volume

64.5L/min

驱动液压系统压力Drive hydraulics working pressure

44.5MPa

转向液压系流量Steer hydraulics discharge volume

45.6L/min

转向液压系统压力Steer hydraulics working pressure

17MPa

举升油缸数量Lift cylinders

2

翻斗缸数量Tilt cylinders

1

转向缸数量Steering cylinders

1

服务保养加注 Service Refill

燃油箱Fuel tank

30L

发动机机油Engine oil

3.4L

发动机冷却液Engine coolant

4.5L

液压油箱Hydraulic tank

17L

整个液压系统Hydraulic System (including tank)

50L

前桥Front axle oil

7L

后桥Rear axle oil

7L

传动系统Transmission

3.5L

噪音水平Sound Level

司机耳旁噪音 LpA Sound pressure level in cab according to ISO 6396

84dB（A)

机外辐射噪音 LWA External sound level according to ISO 6395 and EU Noise Directive 2000/14/EC

101dB（A)

外形尺寸Dimensions

Bucket：0.4m³ bucket
Pallet：1.2m pallet

A

整机长度 Overall Length

3860mm

B

整机长度（不加铲斗）Total Length without bucket

3140mm

C

车桥中心到铲斗中心轴距离Center of axle up to the bucket pivot point

506mm

D

轴距 Wheel base

1515mm

E

后悬 Rear overhang

997mm

F

整机高度 Height (min./max.)

2335mm

G

货叉的过载高度（装载机水平）
Overload height with pallet forks (loader unit horizontal)

1181mm

H

座椅高度Seat height

1250mm

I

G点卸载距离（带货叉）≤

845mm

Maximum reach at G (with pallet forks)

J

总工作高度Total working height (with standard bucket)

3449mm

Total working height (with pallet fork)

3225mm

K

铲斗铰销高度≤Max. height of the bucket pivot point

2780mm

L

铲斗放平高度Load-over height (with standard bucket)

2526mm

Load-over height (with pallet fork)

2561mm

M

卸载高度Dumping height

1997mm

N

卸载距离（铲斗）Dumping reach (with standard bucket)

272mm

卸载距离（货叉）Dumping reach (with pallet fork)

27mm

O

下挖深度Scraping depth

11mm

P

整机宽度（不加铲斗）Overall width without bucket

1410mm

Q

轮胎中心宽度Track width

1015mm

S

离地间隙Ground clearance

236mm

T

转弯半径（铲斗外侧）≤Maximum radius outside

3210mm

U

转弯半径主机外侧Radius on the outer edge

2900mm

V

转弯半径内侧Inside radius

1420mm

W

转弯角度 Articulation angle

40°

X

提升高度收斗角≤Rollback angle at max. lift height

48°

Y

提升高度卸载角≤ Max. angle for bucket emptying

43°

Z

地面位置收斗角Rollback angle on the ground

48°

请注意，以上外形尺寸参数均为配置标准0.4m³铲斗、30/15.5-15轮胎、固定驾驶棚时的尺寸，不同配置会有变化
